STORMWATER & TRADEWASTE SOLUTIONS
Silt Traps & Sediment Capture Systems

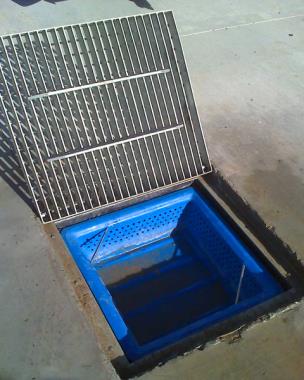

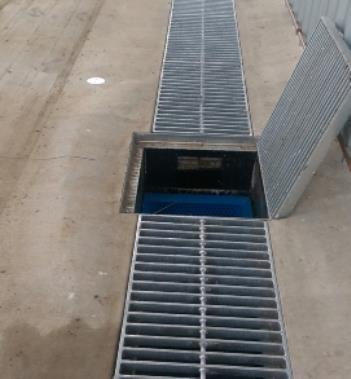

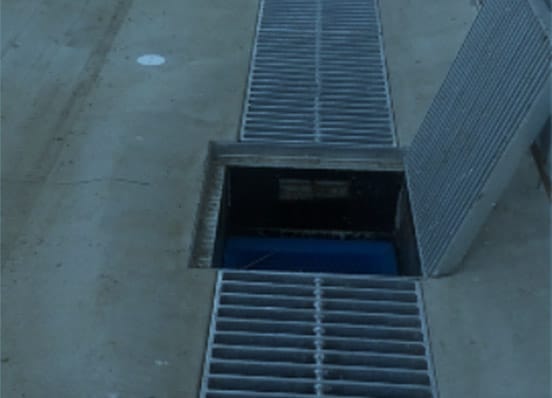

The Fox PT600 Silt Trap is an industrial-grade sediment pit designed to capture silt, debris, and coarse sediment from stormwater runoff and wash bay flows. Ideal for roofed wash bays, car parks, and driveway areas, it supports EPA and council compliance by removing solids at the source. The silt basket is accessible and low-maintenance, making it easy to service and clean.
Silt Traps for Wash Bays

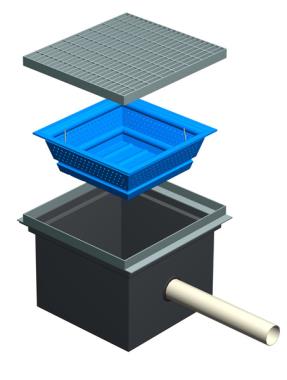

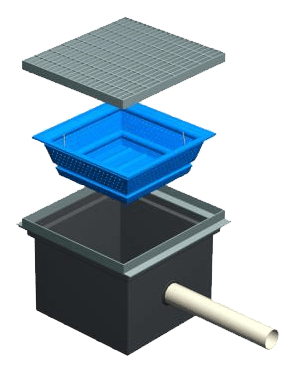

The Fox PT600 silt trap features an industrial-strength silt basket with approximately 50 litres of sediment capacity. Designed for ease of maintenance, the removable basket ensures simple and low-cost servicing. A high-flow bypass version is also available to handle heavier rainfall and runoff events.
Our team can also assist with wash bay design, from specification to installation, with support from our in-house system designers.
Compare Models at a Glance
| Model | Outlet Size | Invert Level | High Flow Bypass | Grate Class | Download Spec |
|---|---|---|---|---|---|
| Fox PT600 – 100 Class D | 100mm | 355mm | No | Class D | 📄 Download Spec Sheet |
| Fox PT600 – 100 High Flow Silt Trap | 100mm | 355mm | Yes | Class D | 📄 Download Spec Sheet |
| Fox PT600 – 150 Class D Silt Trap | 150mm | 390mm | No | Class D | 📄 Download Spec Sheet |
Related Systems
- Gross Pollutant Traps – for solid waste interception
- First Flush Systems – for managing washdown runoff
Need a certified silt trap pit or sediment capture system for your site?
Fox provides proven silt and stormwater control systems to help you meet environmental requirements. Get in touch for expert advice and fast turnaround.
